Guide to Machining PEEK

PEEK (Polyether Ether Ketone) is like the superhero of thermoplastics. It’s strong, resilient, and can withstand some pretty extreme conditions. But when it comes to machining, it can be a bit of a tricky customer. Whether you're a seasoned pro or a newbie looking to dive into the world of PEEK machining, this guide has got you covered. We’ll walk you through everything from selecting the right tools to avoiding common pitfalls. Ready to become a PEEK machining master? Let’s dive in!

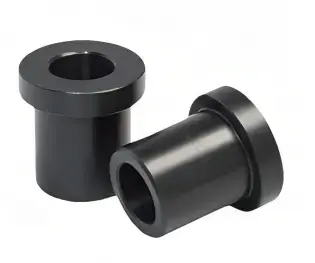

China peek CNC machining

Introduction to PEEK

What is PEEK?

PEEK is a high-performance thermoplastic known for its strength and durability. It's often used in industries where traditional plastics just can't cut it, like aerospace, medical, and automotive sectors. If you need a material that can take the heat—literally and figuratively—PEEK is your go-to.

Why Choose PEEK Over Other Materials?

Why PEEK and not something else? Well, PEEK isn’t just strong; it’s also resistant to chemicals, high temperatures, and wear. It’s kind of like the Swiss Army knife of materials. Unlike metals, it’s lightweight, and unlike many plastics, it doesn’t degrade easily when things get hot or chemically intense.

Common Applications of PEEK in Various Industries

From medical implants to automotive components, PEEK finds its way into some pretty diverse applications. In the medical field, it’s often used for spinal implants because of its biocompatibility. In aerospace, it’s chosen for parts that need to be both lightweight and incredibly strong. It’s even used in industrial machinery where wear and tear are a big concern.

Understanding the Properties of PEEK

Mechanical Strength and Durability

PEEK is tough. It has a tensile strength that can rival some metals, which means it can handle high-stress environments without cracking or breaking.

Thermal Stability and Chemical Resistance

PEEK can withstand continuous use at temperatures up to 250°C. Plus, it resists a wide range of chemicals, including acids, bases, and organic solvents. It’s like that friend who’s calm in any crisis.

Dimensional Stability and Wear Resistance

It doesn’t change shape easily, even under stress or high temperatures, and it’s highly resistant to abrasion. This makes it perfect for precision parts that need to maintain their dimensions.

Why Machining PEEK Can Be Tricky

Heat Sensitivity of PEEK

One of the biggest challenges in machining PEEK is its sensitivity to heat. If your cutting speeds are too high or your tools are dull, you can end up melting the material instead of cutting it. Not exactly what you want!

Precision Requirements and Surface Finish Challenges

PEEK is often used in high-precision applications, so you’ll need to hit tight tolerances and achieve a good surface finish. That can be tough, especially if you’re not familiar with how the material behaves during machining.

Tooling and Fixturing Considerations

Using the wrong tools can lead to poor surface finishes or even tool breakage. And since PEEK is often used in precision parts, proper fixturing is crucial to avoid vibrations or movement during machining.

Preparing for Machining PEEK

Choosing the Right Grade of PEEK

PEEK comes in several grades, including unfilled, carbon-filled, and glass-filled. The choice depends on your application. For example, carbon-filled PEEK is stronger and stiffer, while unfilled PEEK is easier to machine but less strong.

Selecting the Right Tools and Equipment

Carbide or diamond-coated tools are best for PEEK. These materials are hard enough to cut through PEEK without excessive wear and tear. Avoid high-speed steel tools, as they can dull quickly and cause overheating.

Safety Precautions and Best Practices

Always wear safety goggles and ensure good ventilation. PEEK can produce fine dust when machined, which isn’t something you want to breathe in. Also, make sure your tools are sharp and your machine is properly calibrated to avoid accidents.

Machining Techniques for PEEK

Turning PEEK: Tips and Tricks

When turning PEEK, sharp tools and low feed rates are your best friends. Keep the cutting speed around 400-500 SFM and use a light depth of cut to avoid material deformation.

Milling PEEK: How to Get It Right

For milling, high-speed carbide tools and climb milling techniques work best. Aim for a cutting speed between 300-600 SFM and a moderate feed rate to prevent chipping or cracking.

Drilling and Tapping PEEK Without Issues

Use carbide drills and a peck drilling technique to avoid overheating.

For tapping, use taps specifically designed for plastic materials to get clean threads without tearing.

Achieving a Perfect Surface Finish on PEEK Parts

Achieving a good surface finish can be challenging due to PEEK’s stiffness. Use high-speed polishing and deburring tools to get a smooth finish. Also, consider using coolants to minimize heat build-up and prevent surface damage.

Optimizing Machining Parameters

Cutting Speeds and Feeds for PEEK

The optimal cutting speed for PEEK ranges from 300 to 600 SFM, depending on the operation. Keep feed rates low to moderate to avoid chatter and tool wear.

Using Coolants and Lubricants Effectively

Coolants can help prevent overheating, but use them sparingly. Too much coolant can cause thermal shock and lead to cracking. A mist or air blast is usually enough.

Managing Heat Build-up During Machining

Heat build-up can cause PEEK to deform or melt. Use sharp tools, moderate cutting speeds, and consider pausing between passes to allow the material to cool down.

Avoiding Common Mistakes in PEEK Machining

Overheating and Material Damage

Overheating can lead to material degradation and poor surface finish. Monitor cutting temperatures and adjust speeds and feeds as needed.

Tool Wear and Surface Defects

Using the wrong tools can cause rapid wear and poor surface quality. Stick to carbide or diamond-coated tools and replace them as soon as they show signs of wear.

Poor Fixturing Leading to Inaccurate Parts

Inadequate fixturing can cause parts to shift during machining, leading to inaccuracies. Always ensure your parts are securely clamped and your fixtures are rigid.

Quality Control for Machined PEEK Parts

Inspection Techniques for Dimensional Accuracy

Use precise measuring tools like CMMs (Coordinate Measuring Machines) to check dimensions. This is crucial for parts used in high-precision applications.

Surface Roughness Measurement

A profilometer can measure surface roughness to ensure it meets the required specifications. This is especially important for parts used in medical or aerospace applications.

Ensuring Consistency in High-Precision Parts

Consistency is key when machining high-precision PEEK parts. Regularly check your machine settings and tool conditions to maintain consistent quality across batches.

Post-Machining Processes for PEEK

Annealing to Reduce Residual Stress

Annealing can help relieve stress that may have built up during machining, reducing the risk of cracking. Heat the part to around 150°C for a few hours and let it cool slowly.

Surface Treatments and Coatings

Depending on the application, you may need to apply coatings to improve wear resistance or reduce friction. PEEK can be coated with materials like PTFE for enhanced performance.

Assembly Considerations for PEEK Components

PEEK can be sensitive to certain adhesives and solvents, so choose your assembly methods carefully. Mechanical fasteners or specially formulated adhesives are usually best.

Applications of Machined PEEK Parts

Medical Devices and Implants

PEEK’s biocompatibility makes it ideal for medical implants and devices. It’s used in spinal implants, dental abutments, and more.

Aerospace and Automotive Components

In aerospace and automotive, PEEK is used for parts that need to withstand high temperatures and mechanical stress, such as brackets, bushings, and insulation components.

Industrial and Manufacturing Equipment

PEEK is used in industrial equipment where resistance to wear, chemicals, and high temperatures is required. It’s common in pump components, valves, and seals.

Troubleshooting Machining Issues with PEEK

Dealing with Surface Defects

If you’re seeing surface defects, check your tool sharpness and cutting parameters. Slow down the cutting speed and use a light depth of cut to improve the surface finish.

Fixing Dimensional Inaccuracies

Dimensional inaccuracies can often be traced back to poor fixturing or tool wear. Make sure your part is securely clamped and your tools are in good condition.

Preventing Tool Breakage and Wear

Tool breakage and wear are common issues with PEEK. Using carbide or diamond-coated tools and keeping them sharp can help prevent these problems.

Machining PEEK can be challenging, but with the right tools and techniques, it’s definitely manageable. Remember to control heat, use the right tools, and check your work frequently to ensure high-quality parts.

Whether you’re making medical devices or aerospace components, PEEK is a versatile material that can meet the most demanding requirements. With a little practice and the right approach, you can master the art of machining this incredible thermoplastic.
