PEEK (polyetheretherketone) is a high-performance plastic material with excellent mechanical, thermal, and chemical properties.

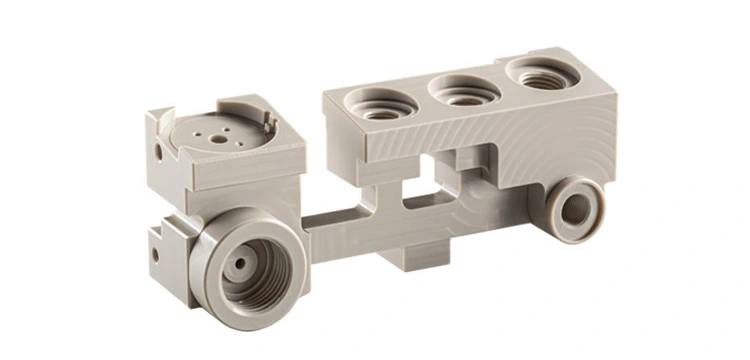

PEEK CNC machining is a cost-effective and efficient manufacturing process that produces parts and products with excellent mechanical, thermal, and chemical properties. The process offers a high degree of design flexibility, dimensional accuracy, and precision, making it suitable for various applications.
Here are some common applications of PEEK CNC machining:
1. Aerospace industry: aircraft engines parts.
2. Medical industry: the parts of implants, surgical instruments, and other medical devices
3. Automotive industry: parts that require exceptional strength, such as engine components and structural parts.
4. Electronics industry: electrical insulators, connectors, and other electronic components that require a high degree of strength and resistance to high temperatures.

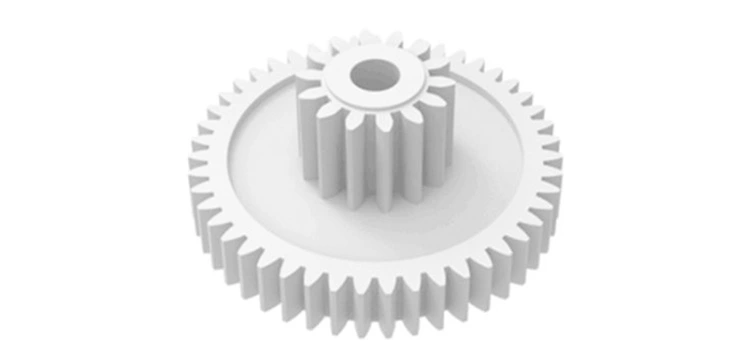

5. Manufacturing industry: such as bearings, gears, and custom parts in high-temperature environments.
In summary, PEEK CNC machining offers excellent mechanical, thermal, and chemical properties, making it highly suitable for many applications.
Custom PEEK CNC machining involves using computer numerical control (CNC) machines to precisely cut, shape, and finish PEEK material into complex components. This process offers several advantages:
Precision and Accuracy: CNC machines provide high levels of precision and accuracy, ensuring that each component meets exact specifications.
Complex Geometries: CNC machining can create intricate designs and complex geometries that would be challenging or impossible with traditional machining methods.
Consistency: The automated nature of CNC machining ensures consistent quality and repeatability across multiple components.
Efficiency: CNC machining is highly efficient, reducing production time and costs, particularly for large-scale manufacturing.
Customization: CNC machining allows for the customization of components to meet specific application requirements, including size, shape, and features.
| Process Stage | Description |
| Design and Engineering | * Create 3D CAD models of the desired PEEK components. * Define precise dimensions, tolerances, and surface finishes. |
| Material Selection | * Choose the appropriate grade of PEEK based on specific application requirements. * Consider factors like mechanical strength, thermal resistance, and chemical resistance. |
| CNC Machining | * Setup: Secure the PEEK material on the CNC machine's worktable. * Programming: Input the CAD design into the CNC machine's control system. * Machining: Utilize CNC milling and turning machines to remove excess material and shape the component. |
| Finishing | * Post-Machining Operations: Perform finishing operations like sanding, polishing, or drilling as needed. * Surface Treatments: Apply surface treatments like electropolishing or coating to enhance properties or aesthetics. |
| Quality Inspection | * Dimensional Inspection: Verify that the machined components meet specified tolerances. * Visual Inspection: Check for any defects, such as burrs or scratches. * Functional Testing: Test the components for their intended purpose, if applicable. |
| Packaging and Shipping | * Packaging: Package the finished components to protect them during transportation. * Shipping: Ship the components to the customer or the next stage of the manufacturing process. |
PEEK is an excellent material for machining, especially for applications that demand high strength, thermal stability, and chemical resistance. but it requires careful handling due to its unique properties.
High Mechanical Strength: PEEK is incredibly strong and can maintain its structural integrity even at high temperatures, making it ideal for high-performance parts.
Dimensional Stability: It offers excellent dimensional stability, which is crucial for precision components.
Chemical Resistance: PEEK is resistant to a wide range of chemicals, making it suitable for harsh environments.
Wear and Abrasion Resistance: It has low friction and high wear resistance, which is beneficial for components that experience significant friction.
When deciding on a material for CNC machining, PEEK (Polyetheretherketone) often stands out due to its unique combination of properties. However, other materials may also fit specific needs, depending on the application. Let’s compare PEEK with ABS, polycarbonate, PTFE, and metals to understand its advantages and limitations.

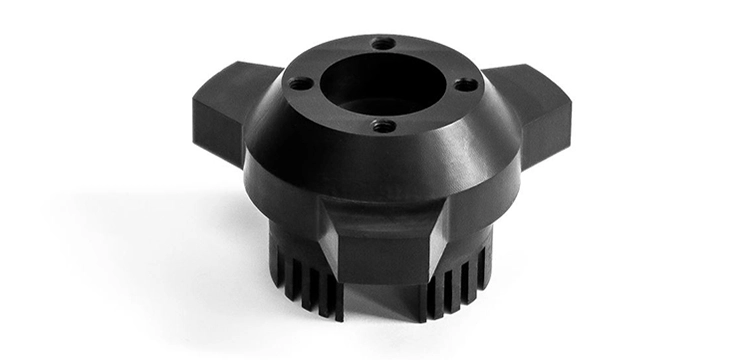

PEEK vs. ABS
| Feature | PEEK | ABS |
| Strength | Exceptionally high strength and stiffness | Moderate strength and rigidity |
| Temperature Resistance | Operates up to 250°C (482°F) | Limited to ~100°C (212°F) |
| Chemical Resistance | Excellent resistance to most chemicals | Moderate resistance to chemicals |
| Cost | Expensive | More affordable |
| Machinability | Requires high-precision tools and slower speeds | Easy to machine |
| Applications | Aerospace, medical, and high-performance parts | Consumer goods, automotive, and prototypes |
Key Takeaway: PEEK is the superior choice for high-stress, high-temperature environments, while ABS is more suitable for cost-sensitive, less demanding applications.
PEEK vs. Polycarbonate
| Feature | PEEK | Polycarbonate (PC) |
| Impact Resistance | High but lower than PC | Exceptional impact resistance |
| Temperature Resistance | Superior, withstanding up to 250°C | Moderate, limited to ~140°C (284°F) |
| Weight | Lightweight yet dense | Lighter than PEEK |
| UV Resistance | UV resistant | Prone to yellowing under UV exposure |
| Cost | Higher | Lower |
Key Takeaway: Choose PEEK for thermal and chemical performance; opt for polycarbonate when impact resistance and cost are key factors.
PEEK vs. PTFE
| Feature | PEEK | PTFE (Teflon) |
| Strength | Very strong and stiff | Lower strength and rigidity |
| Friction | Moderate, suitable for moving parts | Ultra-low friction coefficient |
| Temperature Resistance | High (250°C) | Comparable (260°C/500°F) |
| Chemical Resistance | Excellent | Excellent |
| Wear Resistance | Superior | Good, but softer than PEEK |
Key Takeaway: PEEK is preferred for strength and wear resistance, while PTFE excels in low-friction and high-lubricity applications.
PEEK vs. Metals
| Feature | PEEK | Metals (e.g., Aluminum, Steel) |
| Weight | Lightweight | Heavier |
| Corrosion Resistance | Naturally corrosion-resistant | Requires coatings for resistance |
| Temperature Resistance | High (250°C) | Higher for many metals |
| Machinability | Easier to machine compared to metals | More challenging for hard metals |
| Cost | Higher material cost | Metal cost varies (steel is often cheaper) |
| Applications | Replaces metals in lightweight, high-performance parts | Structural components and heat-intensive applications |
Key Takeaway: PEEK is ideal for weight-sensitive applications where strength and corrosion resistance are required. Metals remain better for extremely high-load or structural applications.
